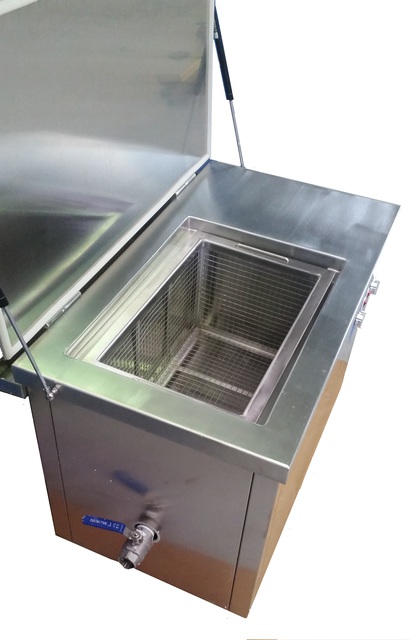

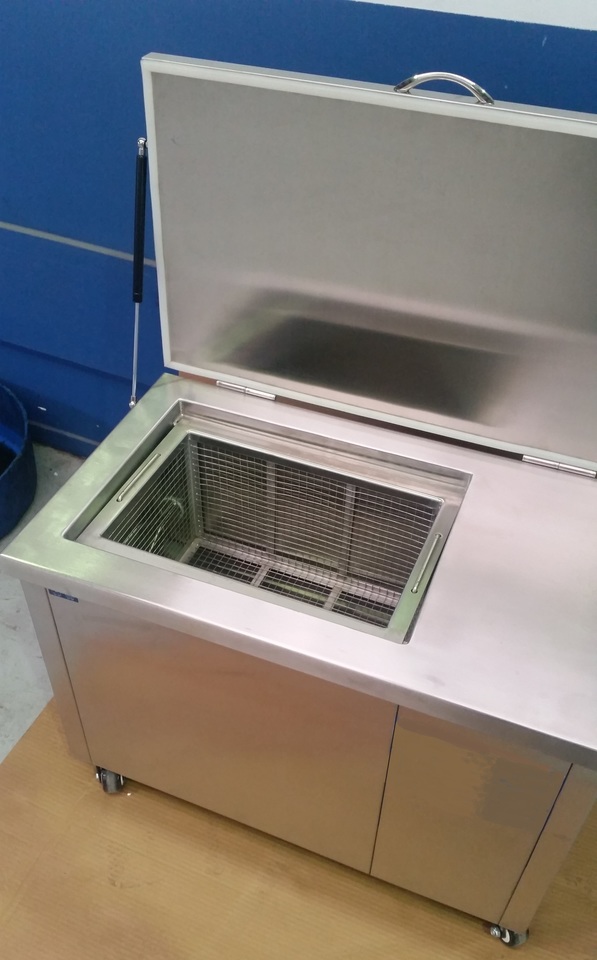

40 Litre Industrial Ultrasonic Cleaner
40 Litre Industrial Ultrasonic Cleaner
Tank size 480 mm long x 280 mm wide x 300 mm deep
Overall size 800L x 480W x 650H

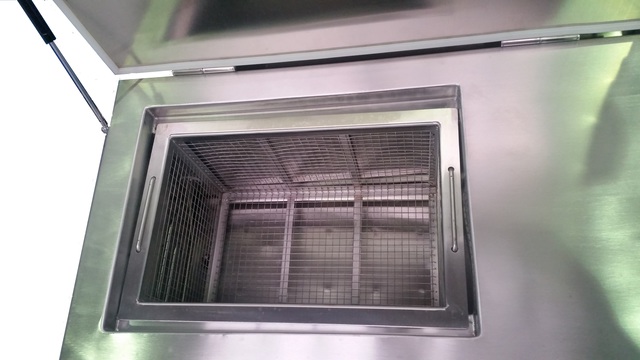

The basket is approximately 10 mm smaller than the tank all around
600 Watt Ultrasonic power 2000 Watt heating

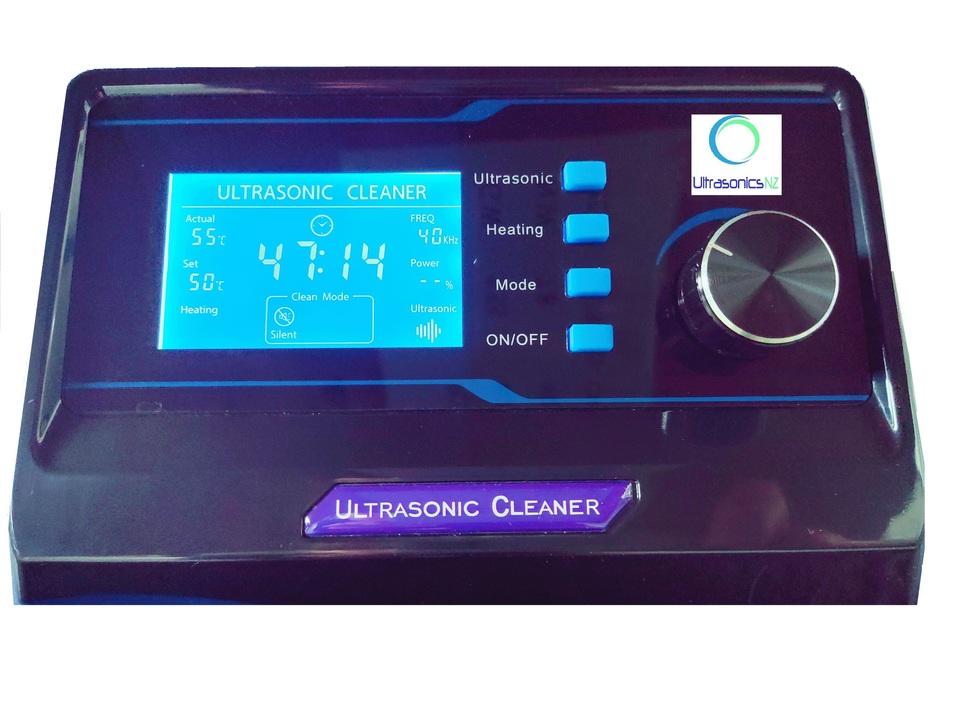

FULL DIGITAL CONTROL
Degas function
Adjustable transducer power output 30%-100%
Timer range 0-99 Minutes
Heating range 0-100 Degrees
On casters to make it easier to shift.
Convenient drain tap fitted for easy draining
Replaceable in tank heating element for quick tank heat up
and thermostatic heating control to 100 degrees Celsius
DEGAS MODE
This removes the gases from the liquid when the tank is first filled .
Once the gases are removed the ultrasonic cleaner will work better
There are a number of ways top do this
1: Just leave the solution to settle for a few hours
2: Just use the ultrasonic cleaner as usual and after the first cleaning cycle the fluid will have just about degassed
3: Use degas mode ,this speeds up the process by allowing the trapped gasses to escape while Degas mode is active
Information
OPERATION INSTRUCTIONS
1 : SIT ULTRASONIC CLEANER ON A FLAT SURFACE
2 : FILL TANK TO ¾ FULL ( AND KEEP THE WATER AT THIS LEVEL )Always unplug when filling with water
3 : ADD THE DETERGENT
4 : CONNECT POWER TO THE MACHINE , PRESS THE ON/OFF BUTTON , THE LCD SCREEN WILL LIGHT
5 : PRESS THE KNOB , TURN THE KNOB TO SET THE REQUIRED CLEANING TIME (1 to 99 minutes)
6 : PRESS THE KNOB , TURN THE KNOB TO THE REQUIRED POWER SETTING ( 30 % - 100 %)
7 : PRESS THE KNOB , TURN THE KNOB TO SET THE REQUIRED TEMPERATURE ( 0-100 Celsius ) (RECOMMENDED TEMPERATURE IS 50-60 Celsius )
8 : PRESS THE KNOB AGAIN TO RETURN TO THE MAIN SCREEN
9 : PRESS THE MODE BUTTON ( SET TO SILENT , STANDARD or DEGAS as required )
10 : PRESS THE HEATINH BUTTON , THE INDICATOR WILL LIGHT INDICATING THE WATER IS HEATING
11 : PRESS THE ULTRASONIC BUTTON , THE INDICATOR WILL LIGHT AND THE ULTRASONIC FUNCTION WILL START ,THE ULTRASONIC FUNCTION WILL STOP ONCE THE ( “set” )CLEANING TIMER HAS FINISHED
WARNING
DO NOT OPERATE IF THE TANK IS LOW ON WATER
DO NOT USE FLAMMABLE LIQUID IN THE TANK
DO NOT USE HI ALCALINE OR ACIDIC FLUID
KEEP HANDS OUT OF TANK WHILE IT IS WORKING
