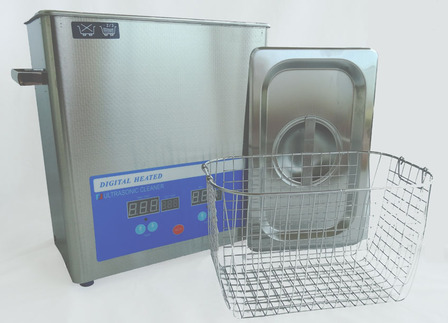

4 Litre Ultrasonic cleaner
4 Litre Ultrasonic cleaner
Code: 4L
2 x 50 Watt transducers @ 40 Khz frequency
Tank size 235 L x 135 W x 150 H
Overall size 265 x 165 x 290

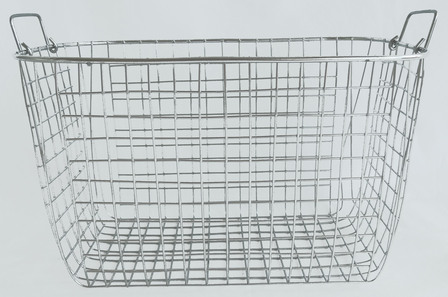

The stainless basket size is approx 10 mm smaller than the tank all around and has 5 mm mesh
It holds 4 liters of water to the brim

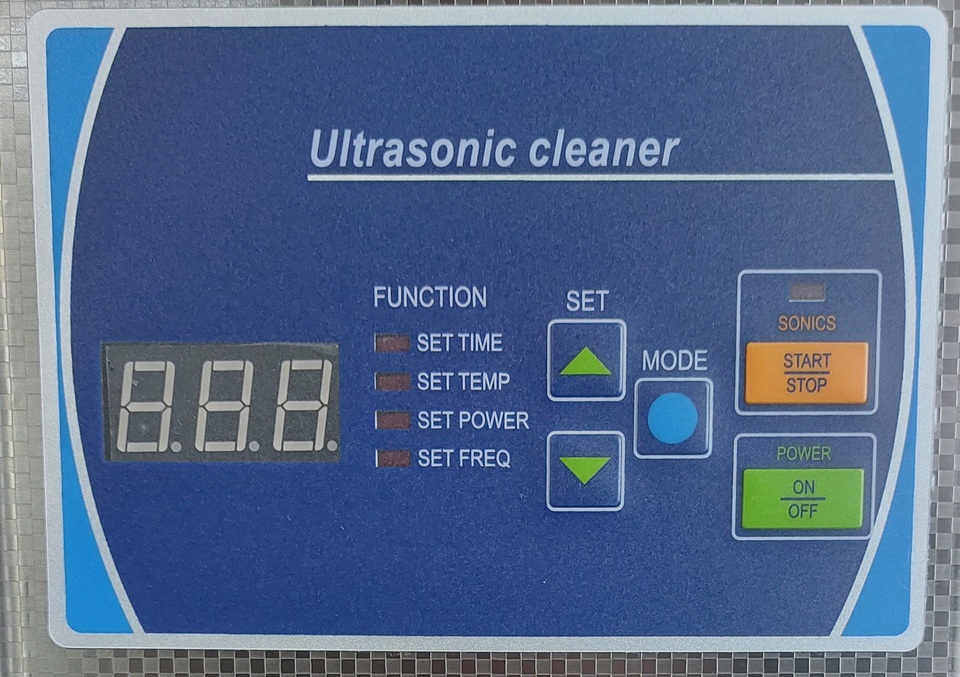

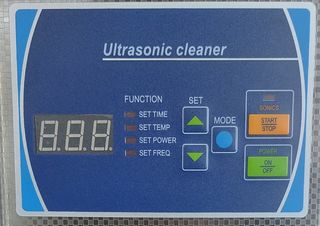

Full digital control of tank
temperature 0-70 degrees
Timer from 0-59 minutes
Five different power levels for the ultrasonic transducer output
From 60-100 Watts
Low and Hi ultrasonic frequency 20 KHz & 40 KHz

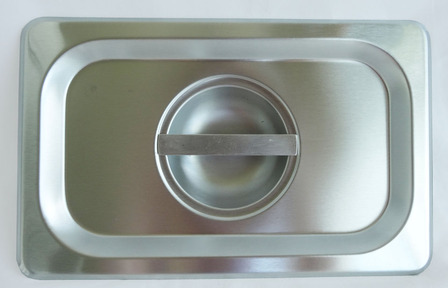

Full stainless tank , body and lid
Also has drain tap fitted. A drainpipe could be added if required
Can be used for a multitude of cleaning purposes from dental to industrial.
You can use straight water in the tank for light cleaning or for heavy cleaning you can use an alkaline detergent and heat the water, this will remove heavy contaminants (oil ,carbon) we have even found it will remove paint.
12 MONTH WARRANTY
Should you have trouble outside of warranty we also stock repair parts
Tested in NZ and conforms with AS/NZS 60335.1 inc A1
Information
ULTRASONIC CLEANER MANUAL
1 : PLACE THE ULTRASONIC CLEANER ON A FLAT STABLE SURFACE
2 : FILL THE TANK TO AT LEAST 3/4 FULL ( THE TANK MUST ALWAYS BE ATLEAST 3/4 FULL WITH WATER OR DAMAGE CAN OCCOUR TO THE TRANSDUCERS AND DRIVER CIRCUITS
3 : ADD YOUR DETERGENT
4 : PLACE YOUR ITEMS TO BE CLEANED INTO THE BASKET
PLUG THE POWER CORD INTO THE ULTRASONIC CLEANER AND WALL SOCKET
5 : TURN THE MACHINE ON
6 : SET THE CLEANING TIME ( UP AND DOWN KEYS ) PRESS THE MODE BUTTON TO MOVE TO THE NEXT PARAMETER
7 : SET THE TEMPERATURE ( UP AND DOWN KEYS ) PRESS THE MODE BUTTON TO MOVE TO THE NEXT PARAMETER
8 : SET THE REQUIRED POWER LEVEL ( UP AND DOWN KEYS ) PRESS THE MODE BUTTON TO MOVE TO THE NEXT PARAMETER
9 : SET THE REQUIRED FREQUENCY ( UP AND DOWN KEYS ) PRESS THE MODE BUTTON TO MOVE TO THE NEXT PARAMETER
10 : PRESS THE START BUTTON , NOW THE CLEANING CYCLE WILL BEGIN AND CONTINUE UNTIL THE SET TIME IS REACHED
PLEASE NOTE THE WATER TEMPERATURE WILL RISE AS YOU USE THE ULTRASONIC CLEANER , THIS IS NORMAL AND UNAVOIDABLE AS THE ULTRASONIC PROCESS CREATES HEAT
